224AARLZ Starrett 0-4* Interchangeable Anvil Micrometer in Case
Processing...

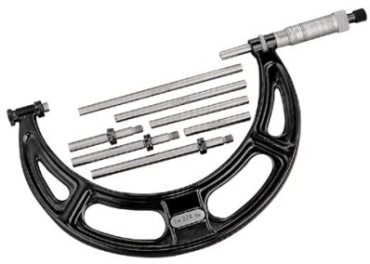

224AARLZ Starrett 0-4* Interchangeable Anvil Micrometer in Case

Code: 224AARLZ

$546.02

Qty

This item is available for purchase. If you have any questions about inventory or expected delivery date, please submit an inquiry by clicking .


Product Description

•••••

224AARLZ
Starrett Interchangeable
Anvil Micrometer


Unusual flexibility, plus a wide range of
measurement makes the Starrett 224 series
satin-chrome micrometers very popular in
machine or automotive repair shops and for all
applications requiring a versatile micrometer.
Each micrometer is equipped with a series of
easily interchangeable anvils, thus providing
the full range in steps of 1" or 25mm with
a single micrometer. Suitable wrenches are
furnished to make necessary adjustments.
These larger sizes have .300" (7.6mm) anvil
and spindle diameters for ease of use on
larger work.


Readability features

  • Starrett satin chrome finish – no glare –
    resists rust
  • Advanced sleeve design with staggered
    lines and distinct figures for precise and
    easy readability
  • Large thimble diameter with distinct
    figures


Ease-of-Handling Features

  • Balanced frame and thimble design
    ensure easy handling and better
    readability
  • Ring-type knurled lock nut for quick and
    sure locking
  • Combination ratchet and speeder for
    uniform pressure and quicker adjustment


Accuracy and Long-Life Features

  • Rigid and stable special cast iron
    frame with appropriate perforations for
    lightness and ribbed for strength and
    stability
  • Extremely hard and stable one-piece
    spindle (the heart of our accuracy)
  • Interchangeable anvils
  • Micro-lapped measuring faces
  • Quick and easy sleeve adjustmen
224, 224M Interchangeable Anvil Micrometers
Catalog No.
Range
Graduation
234 Standards Furnished
224AARLZ
0-4"
.001
1", 2", 3"
224ARLZ
2-6"
2", 3", 4", 5"
224BRLZ
6-9"
6", 7", 8"
224GRLZ
6-12"
6", 7", 8", 9", 10", 11"
224CRLZ
9-12"
9", 10", 11"
224DRLZ
12-16"
12", 13", 14", 15"
224ERLZ
16-20"
16", 17", 18", 19"
224JRLZ
20-24"
20", 21", 22", 23"
224MAARLZ
0-100mm
0.01mm
25, 50, 75mm
224MARLZ
50-150mm
50, 75, 100, 125mm
224MGRLZ
150-300mm
150, 175, 200, 225, 250, 275mm
224MDRLZ
300-400mm
300, 325, 350, 375mm
224MERLZ
400-500mm
400, 425, 450, 475mm
224MJRLZ
500-600mm
500, 525, 550, 575mm
