697Z Starrett Inside Dial Gage 2 3/8-18" Range, .001" Grad, 0-20-0 Dial
|
| |
|
Quantity in Basket:
None
Price: $491.28
List Price:
552
|
| |
| |
|

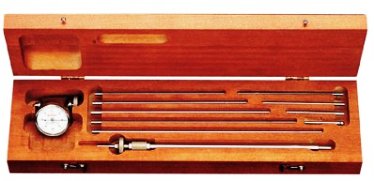

697, 697M Inside Dial Gages
2-3/8–18" / 61–458mm
These gages are used between two walls to check parallelism and also
to take comparative measurements of internal diameters . There are ten
rods and one extension furnished . The rods are marked to designate
the approximate overall length of the gage . All measuring contacts are
rounded . Tool can be set with a micrometer .
The indicator bezel is rotated to adjust the dial in relation to the hand
and has a non-breakable crystal . The movement of the dial indicator
is approximately 5/32" (4mm) . Rods of different lengths can also be
furnished on request .
| 697 & 697M Inside Dial Gages |
Catalog No |
Range |
Graduation |
Dial Reading |
One Revolution |
697Z |
2-3/8–18" |
.001" |
0-20-0 |
.040" |
697MZ |
61-458mm |
0 .02mm |
0-50-0 |
01 .0mm |
|
|
