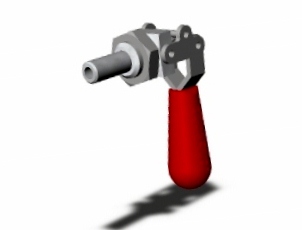

602 Destaco Straight Line Action Clamp
Code: 602
$20.00
Product Description
•••••
602
Destaco Straight Line Action Clamp
Features:
Versatile and compact straight line
action clamps
Threaded body for through hole mounting
-SS models are stainless steel
Applications:
Assembly
Checking fixtures
Welding fixtures
Tensioning devices
Model No. |
Edp No. |
Holding Capacity |
Weight |
EF:AF (pushing/ pulling) |
Plunger Travel |
(M) Plunger Thread |
|
|
56020 |
200 lbf
|
0.12lb
|
31:1/28:1 |
0.75 |
1/4-20 |
|
| 602-SS | 56029 |
||||||
| 604 | 56040 |
300 lbf |
0.44lb |
45:1/26:1 |
1.50 |
5/16-18 |
|
| 604-SS | 56049 |
||||||
| 624 | 56240 |
700 lbf |
1.63lb |
49:1/21:1 |
2.63 |
3/8-16 |
|
| 624-SS | 56249 |
