173MA Starrett Thickness Gage, 0.03-5.0mm Range, 13 Straight Leaves

Code: 173MA
$85.00
Qty

This item is available for purchase. If you have any questions about inventory or expected delivery date, please submit an inquiry by clicking .

Product Description

•••••

173MA

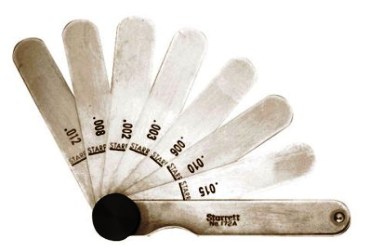

Starrett Thickness Gages


These gages are used in automotive, aviation, diesel and farm
equipment manufacture and service and also in jig, fixture, gage and
experimental work. Especially useful in adjusting tappets, spark plugs,
distributor points, checking bearing clearances and gear play, fitting
pistons, rings and pins and gaging narrow slots. Made in a wide range
of types and sizes, each having from 6 up to 26 leaves ranging in
thickness from .0015-.200" and 0.03-5mm thick straight or tapered.

  • Leaves made of finest tempered-steel, carefully finished to correct
    thickness, individually tested and marked with thickness
  • Locking device on most gages– permits securely locking one or
    more leaves in position
  • Leaves easily removed or replaced
  • Rugged, substantial steel case protects leaves
Inch Reading Thickness Gages with Straight Leaves
Catalog No.
No. of
Leaves
Size Leaves
 Range)
Leaf Thickness (Inches)
172A
9
1/2 x 3-1/32"
 .0015, .002, .003, .004, .006, .008, .010, .012, .015
66
26
 .0015, .002, .0025, .003, .004, .005, .006, .007, .008, .009, .010, .011, .012, .013, .014, .015, .016, .017, .018, .019, .020, .021, .022, .023, .024, .025
66B
31
 .0015, .002, .0025, .003, .004, .005, .006, .007, .008, .009, .010, .011, .012, .013, .014, .015, .016, .017, .018, .019, .020, .021, .022, .023, .024, .025, .026, .028, .030, .032, .035
467
13
1/2 x 4-1/2"
.0015, .002, .003, .004, .006, .008, .010, .020, .030, .040, .075, .100, .200
172E
8
1/2 x 12"
.002, .003, .004, .005, .006, .008, .010, .015
572A
22

1/2 x 3-1/32"

 .0015, .002, .0025, .003, .004, .005, .006, .007, .008, .009, .010, .012, .013, .014, .015,
.016, .018, .020, .022, .025, .030, .035
6 Spark Plug Wire Gages: .025, .030, .034, .035, .040, .045
572B
 .0015, .002, .0025, .003, .004, .005, .006, .007, .008, .009, .010, .012, .013, .014, .015,
.016, .018, .020, .022, .025, .030, .035
Inch Reading Thickness Gages with Tapered Leaves
66T
26
1/2-1/4 x
3-1/32"
 .0015, .002, .0025, .003, .004, .005, .006, .007, .008, .009, .010, .011, .012, .013, .014, .015, .016, .017, .018, .019, .020, .021, .022, .023, .024, .025
172AT
9
 .0015, .002, .003, .004, .006, .008, .010, .012, .015
172CT
8
1/2-1/4 x 6"
.002, .003, .004, .006, .008, .010, .012, .015
Millimeter Reading Thickness Gages with Straight Leaves
66MA
20
12.7 x 77mm
 0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.0
173MA
13
 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.30, 0.40, 0.50
467M
12.7 x 114mm
0.04, 0.05, 0.06, 0.07, 0.08, 0.10, 0.15, 0.20, 0.30, 1.0, 2.0, 3.0, 5.0
Millimeter Reading Thickness Gages with Tapered Leaves
172MBT
9
12.7-7 x 114mm
0.04, 0.05, 0.06, 0.07, 0.08, 0.10, 0.15, 0.20, 0.30
173MAT
13
12.7-7 x 77mm
 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.30, 0.40, 0.50
173MCT
12.7-7 x 152mm
