Product Description

•••••

439-18
Starrett Builders Combination Tool
18"


This versatile tool is invaluable for carpenters, builders, patternmakers, cabinetmakers and
all mechanics .

  • Combines seven tool functions in one compact, practical unit . It is a rule,
    square, level, plumb, protractor, bevel and pitch-to-foot indicator .
  • It consists of a stock, 9" (230mm) long, a hardened, photo-engraved 1-1/2" (38
    mm) wide blade in 18" or 24" lengths, and a protractor
  • On one side the protractor is graduated from zero to 90 in both directions showing
    the direct and supplementary angles . The other side is graduated in 1/2" pitch
    increments from 0-12" per foot pitch .
  • The stock has four levels which permits leveling or plumbing the work in relation
    to any angle or pitch

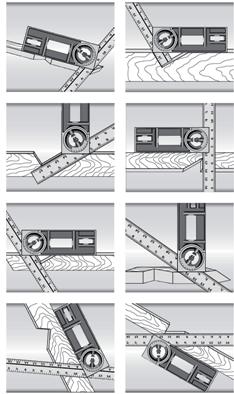

  • Tool is ideal for laying out or cutting valleys or hips of different pitches,
    done as follows: Rotate the blade to the desired pitch, place the face of the stock
    against the work and draw a line . Then place the square end of the stock against
    the line and draw the complementary line . This gives the complementary angle
    automatically, without calculation .
439 Builders Combination Tool
Catalog No
Blade
Length
Blade Graduation
Head Graduation
Degrees
Pitch
439-18
18"
4R 8ths, 16ths, 32nds, 64ths
0-90
0-12"
per ft .
439-24
24"
