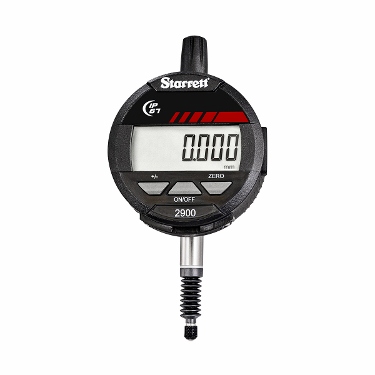

2900-6 Starrett IP67 Electronic Indicator
Processing...

2900-6 Starrett IP67 Electronic Indicator

Code: 2900-6

$577.05

Qty

This item is available for purchase. If you have any questions about inventory or expected delivery date, please submit an inquiry by clicking .


Product Description

•••••

2900-6

Starrett Electronic Indicator

Features

  • True Absolute Sensor Technology – remembers position and zero set point even during battery replacement.

Cannot be “over-sped” into failure. Intuitive design and layout – easy to learn and use

  • Positive, tactile-feel button activation
  • IP67 protection against dirt, dust water and coolant to withstand hostile shop environments
  • Long battery life
  • External power supply not required
  • CE compliant
  • Data output on all models
  • Choice of Basic, Standard and Advanced feature levels
  • One micron resolution available
  • Selectable resolution models available
  • Variable ratio measurement systems available
  • Metric-only versions available

Specifications

  • Features of 3-Button Basic Origin Set, Zero Set, Counting Direction Switching

(+/-), Power ON/OFF, Inch/mm conversion (n/a Metric only), Data Output

  • Features of 6-Button Standard Origin Set, Zero Set, Counting Direction Switching

(+/-), Power ON/OFF, Inch/mm conversion (n/a Metric only), Data Output, Limit Set,

Value Preset, Reading Hold, Selectable Resolutions (as indicated), Feature Lock

  • Features of 6-Button Advanced Origin Set, Zero Set, Counting Direction Switching

(+/-), Power ON/OFF, Inch/mm conversion (n/a Metric only), Data Output, Limit Set,

Value Preset, Reading Hold, Selectable Resolutions (as indicated), Feature Lock, Max/Min/Runout Value Holding

Catalog No.
Edp.

Description

Resolution

Range

2900-1
09980

3-button Basic English/Metric indicator

.00005"/.001mm

.5"/12mm

2900-2
09981

3-button Basic English/Metric indicator

.0001"/.001mm

2900-4
09983

6-button Standard English/Metric indicator with Selectable Resolution

.0005"/.0001"/.00005"
.01mm /.001mm

2900-6
09985

6-button Advanced English/Metric indicator with Selectable Resolution

.0005"/.0001"/.00005"
.01mm /.001mm

2900-1M
09986

3-button Basic English/Metric indicator

.001mm

12mm

2900-4M
09988

6-button Standard English/Metric indicator with Selectable Resolution

.01mm /.001mm

2900-6M
09980

6-button Advanced English/Metric indicator
with Selectable Resolution

.01mm /.001mm

PT99492

65650

Two CR2032 batteries
